Wine Storage Guide
Ductless wine cellar
cooling
A split-system architecture where the evaporator lives inside the cellar and the condenser sits remote. The right call for some installs, the wrong one for others. This guide is the decision before the install starts.
Cellar range
50–70°F
Same on ducted and purpose-built ductless
Condenser ambient
50–77°F
Required band for any architecture
APEX architecture
Ducted
Cabinet outside cellar, insulated supply + return
Install requirement
Licensed HVAC
Both architectures, DIY voids warranty
What is ductless wine cellar cooling?
Ductless wine cellar cooling is a split-system architecture. The condenser sits remote (outside the building or in a mechanical space), the evaporator coil mounts inside the cellar or on its wall, and insulated refrigerant lines connect the two halves. The cellar receives cool air directly off the evaporator. There are no supply or return air ducts.
Ducted wine cellar cooling does the opposite. A single cabinet sits outside the finished cellar in an adjoining tempered space. Insulated supply and return ducts route conditioned air to and from the cellar. The cellar interior stays free of visible mechanical hardware. Panthaire APEX is a ducted system.
Both architectures use the same vapor-compression cycle and both can hold a cellar at 55°F when sized correctly. The decision between them is mostly about where the cellar lives in the house, whether an adjoining tempered space exists for a ducted cabinet, and how visible the equipment can be inside the cellar. The sections below walk through both, with the cases where each one fits.
What are the ductless wine cellar cooling architectures?
Three architectures show up across purpose-built ductless cellar cooling. Each places the evaporator differently inside the cellar and routes refrigerant lines to a remote condenser. All three are split-system designs at heart.
Evaporator floor or wall, condenser remote
Vertical split system
A floor-standing or upright evaporator inside the cellar, with the condenser installed remotely. Used for larger residential cellars and smaller commercial rooms where the evaporator cabinet can fit against a wall. Refrigerant lines run through the wall to the condenser.
Evaporator on ceiling, condenser above or remote
Ceiling-mount mini-split
The evaporator mounts to the cellar ceiling, with the condenser remote. Lower visual footprint than a vertical split because the evaporator hides above eye level. Good fit for cellars with ceiling clearance and an attic or adjoining space above for refrigerant line routing.
Small head high on wall, condenser outside
Wall-mounted indoor head
A small horizontal evaporator head mounted high on a cellar wall, condenser remote. The most familiar form factor because it mirrors the mini-split heads used in residential rooms. Adapted from comfort cooling for cellar service with cellar-rated controls and a defrost cycle.
A note on residential mini-split A/Cs
A standard residential mini-split A/C is not a wine cellar cooling unit. Its controls refuse to run below the comfort floor (usually 68°F), its compressor and coil are sized for human comfort cycles, and it has no defrost cycle for sustained low-temperature operation. Installing one in a cellar produces frost, short cycling, and early failure, and voids the manufacturer warranty as off-label use. Purpose-built ductless wine cellar systems are a separate product class with cellar-rated controls and a designed defrost cycle.
When does ductless win and when does ducted win?
Ductless wins when the building rules out a ducted approach, when the condenser must live remotely, or when the cellar is small enough that visible equipment is acceptable. Ducted wins when the cellar interior must stay clean, when an adjoining tempered space exists for the cabinet, and when long-term serviceability matters. The architecture choice is usually decided by the building, not the equipment.
Ductless wins when
Split systemNo adjoining tempered space
Cellar shares walls only with finished living rooms. No mechanical room, attic, or utility closet to house a ducted cabinet. Ductless lets the condenser sit further away and run refrigerant lines through the wall.
Condenser must live outdoors
In climates where the only place for the condenser is outside the building envelope, ductless split systems are designed for that. Weather-rated condenser, refrigerant lines handle the run distance.
Retrofit through finished walls
Retrofits into finished basements where running insulated duct work would mean tearing open walls or ceilings often favor ductless. Refrigerant lines are smaller and easier to route through tight cavities.
Small cellars, visible equipment OK
For cellars under ~300 ft³ where a wall-mounted indoor head is an acceptable visual trade for install simplicity, ductless is often the most economical option.
Ducted wins when
Self-contained (APEX)Cellar interior must stay clean

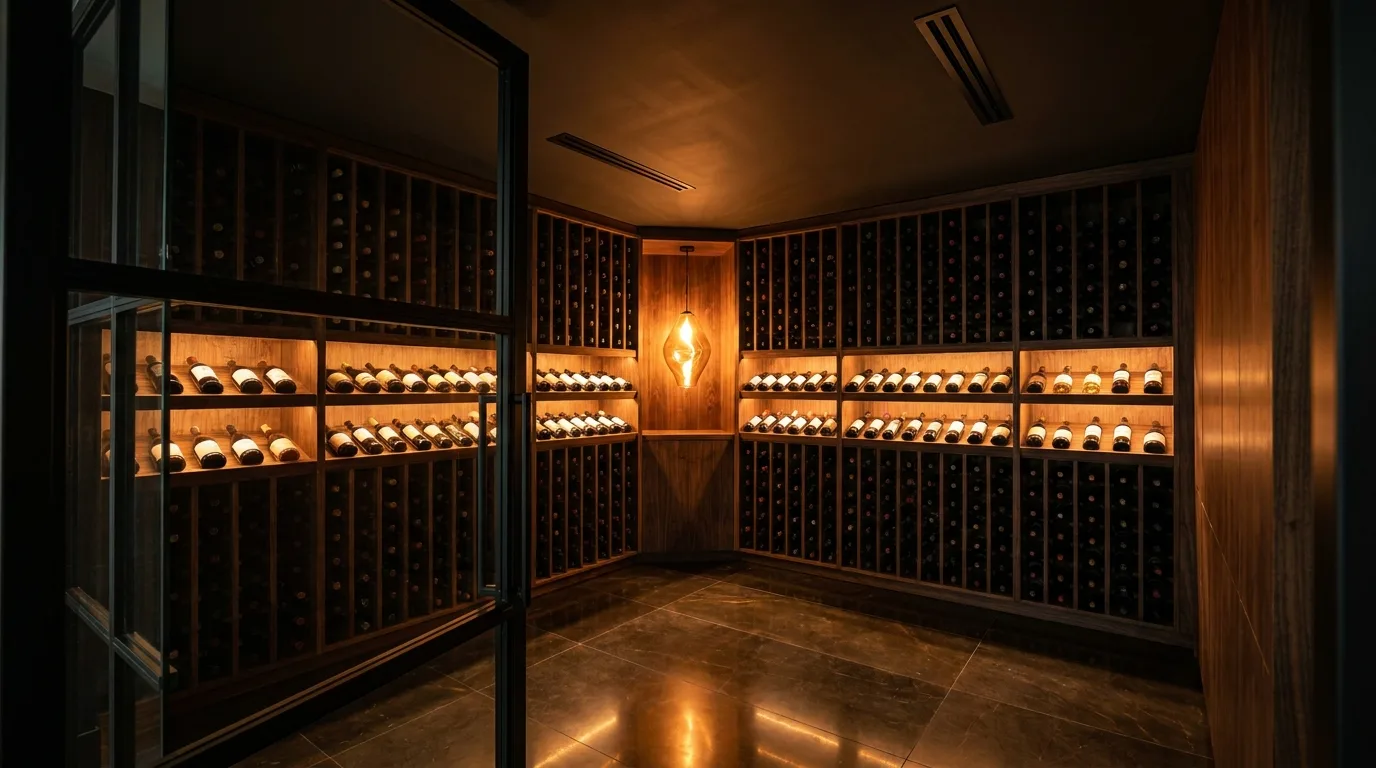

Glass-fronted cellars and display rooms where a visible evaporator head is a problem. Ducted leaves only supply and return grilles inside the cellar; equipment lives in the adjoining space.
Adjoining tempered space exists
A mechanical room, utility closet, attic, or garage sits next to or above the cellar. The ducted cabinet has somewhere to live and stays accessible for service without entering the cellar.
Setpoint stability matters
Ducted self-contained systems use a factory-sealed refrigerant charge rather than a charge added on site. Predictable operating envelope, no technician charge variance.
Long-term serviceability
Cabinet reachable from the adjoining tempered space, filter swaps without entering the cellar, fewer field refrigerant connections to fail over time. Lower 10-year maintenance footprint.
How do ductless and ducted wine cellar cooling compare?
Same attributes, two answers. Both architectures hold a cellar at 55°F when sized correctly and installed by a licensed HVAC professional. The differences below are how they get there.
Architecture
Ductless
Split system, condenser remote
Cabinet location
Condenser remote, evaporator inside cellar
Cellar interior
Visible evaporator on wall or ceiling
Refrigerant charge
Charged on site by HVAC technician
Routing through walls
Smaller refrigerant lines, easier in tight cavities
Service access
Some service inside cellar, condenser remote
Defrost behavior
Cellar-rated units include defrost cycle
Best-fit cellar size
Small to mid-size, simple geometry
Architecture
Ducted (APEX)
Self-contained, cabinet remote
Cabinet location
Single cabinet outside cellar in tempered space
Cellar interior
Supply and return grilles only
Refrigerant charge
Factory-sealed at the cabinet
Routing through walls
Insulated supply + return ducts, needs chases
Service access
Most service from adjoining tempered space
Defrost behavior
APEX runs auto defrost every 8h, about 60min
Best-fit cellar size
Mid to large, glass-fronted, finished spaces
How does Panthaire APEX compare as a ducted alternative?
Panthaire APEX is a ducted residential wine cellar cooling system, engineered for installs where the cellar interior stays clean and the cabinet lives in an adjoining tempered space. Capacities below are rated for a sealed cellar with R-20 insulation and dual-pane Low-E glass.
Ducted self-contained
All refrigeration components live in a single cabinet outside the cellar. Insulated supply and return ducts move conditioned air. Cellar interior stays clean.
Factory-sealed charge
Refrigerant is sealed at the factory rather than charged on site. APEX ships with R290 from July 2025 onward (R134a prior).
55°F default, ±2°C locked
Default setpoint at 55°F with fan on Auto out of the box. The differential is factory-locked at ±2°C, not user-adjustable, to prevent short cycling.
Service from outside the cellar
The cabinet is reachable from the adjoining tempered space. Filter cleaning, drain line flush, and most diagnostics happen without entering the cellar.
APEX sizing at a glance
Three models cover most residential cellars. Capacities assume a properly built envelope. Glass exposure, room ambient, and door use all shift the right model up or down.
Ductless wine cellar cooling FAQ
Tap a question to expand the answer.
A ductless wine cellar cooling system is a split-system architecture where the condenser sits outside the cellar (often outside the building entirely) and the evaporator coil mounts inside the cellar or on its wall. Insulated refrigerant lines connect the two halves. There are no supply or return air ducts because the evaporator delivers cool air directly into the room. Common ductless variants include vertical split units, ceiling-mount mini-splits, and wall-mounted indoor heads.
Next step
Decide before the install starts
The architecture decision is much easier to make before the duct work or refrigerant lines go in. Start with the BTU calculator, then look at the room for an adjoining tempered space.
